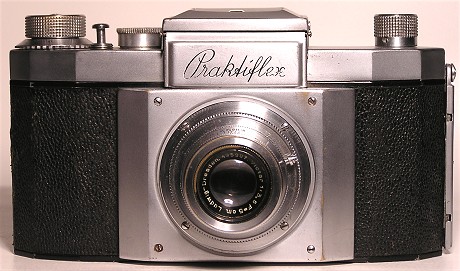

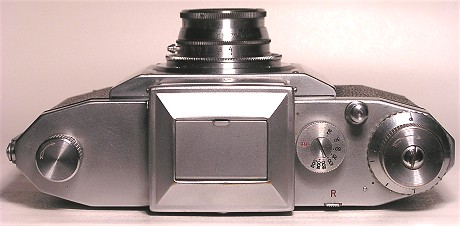

| Praktiflex,
1st generation-2nd change- 5th model with thin "Praktiflex"
lettering |
| Producer data |
| Producer |
Kamera-Werkstätten Charles A
Noble Niedersedlitz
|
responsible constructor |
Alois Hoheisel |
| production period |
December 1939 to April 1940 |
no of produced cameras |
approx. 1,700 |
| Technical properties of the camera |
| shutter type |
mechanically controlled horizontal-run
rubberised cloth-blind type shutter |
exposure time
(possible settings) |
B,
1/20, 1/30, 1/50, 1/75,
1/100, 1/200, 1/300,1/500 |
| view finder |
fixed waist-level view finder with condenser type ground-glass focusing screen (´Stevens Screen´) |
mirror |
instant-return mirror |
| film transport / frame counter |
knob film advance, manual frame
counter below advance bottom |
lens mount |
M40x1 !! |
| self timer |
none |
battery |
none |
| metering system |
none |
flash system |
none |
| flash indication |
none |
aperture reflection into view finder |
none |
| general comments |
 | large film advance knob (diameter ~21mm) with frame counter below
this bottom, coarse knurling |
| rewind knob (diameter ~14mm) |
| very thin gravure of "Praktiflex" lettering |
| red B |
| red R beside rewind lever |
| additional screw below rewind lever |
| black leatherette |
| on camera back, internal (last picture) with label "Kamerawerkstätten
Dresden Niedersedlitz" |
|
| collection data |
| Hummel-No |
074 (Schulz-version:5) |
Kadlubek-No. |
KWE 0231 ??? |
| body no. |
2571 |
lens no. |
495907 |
| lens type |
Victar 1:3.5 F=5cm
Ludwig-Dresden |
purchase price |
350€ |
| advertising |
|
manual |
|
|
|
