| Hexacon
(Pentacon,
second variant, export variant, large tower, original Consol) |
| Producer data |
| Producer |
VEB Zeiss Ikon Dresden |
responsible constructor |
Walter Henning |
| production period |
April 1956 to August 1956 |
no of produced cameras |
part of Contax D series
(69,599) |
| Technical properties of the camera |
| shutter type |
mechanically controlled horizontal-run
rubberized cloth-blind type shutter |
exposure time
(possible settings) |
B, 1/1, 1/2, 1/5, 1/10, 1/20, 1/50, 1/100,
1/200,1/500, 1/1000 |
| view finder |
fixed eye-level view finder with condenser type ground-glass focusing screen (´Stevens Screen´) |
mirror |
no instant-return mirror |
| film transport / frame counter |
knob film advance, loose film take-up spool, manual frame
counter |
lens mount |
M42x1 |
| self timer |
mechanically, ~10s |
battery |
none |
| metering system |
none |
flash system |
X synchronization with coaxial
socket on the top cover, none accessory shoe |
| flash indication |
none |
aperture reflection into view finder |
none |
| general comments |

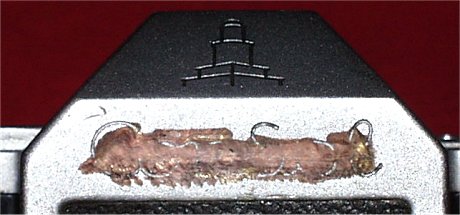

 | engraved: large Ernemann tower |
| ConSol signature below the screwed name tag |
|
| collection data |
| Hummel-No |
096a (Schulz-version:19) |
Kadlubek-No. |
ZIK 5220 |
| body no. |
89907 |
lens no. |
4318825 |
| lens type |
Jena T 1:2,8/50 (Tessar) |
purchase price |
160€ |
| advertising |
|
manual |
|


|
