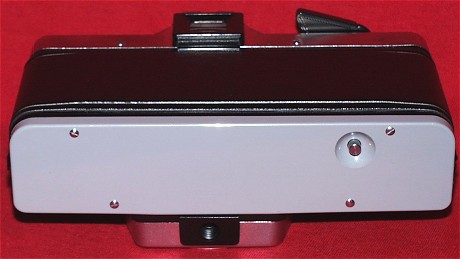

Praktica ENDO noname (L 3 ENDO without badge)
Producer data
Producer Kombinat VEB Pentacon Dresden responsible constructor Rolf Noack
production period December 1975 to January 1980 no of produced cameras as a part of Praktica L 2-series (161,240)
Technical properties of the camera
shutter type mechanically controlled vertical-moving metal-blade focal plane shutter exposure time
(possible settings)
B, 1/1, 1/2, 1/4, 1/8, 1/15 1/30, 1/60, 1/125, 1/250,1/500, 1/1000
view finder fixed eye-level view finder (Pentaprism) with special clear field lens for the use with a medical endoscope mirror instant-return mirror
film transport / frame counter quick-release lever, Pentacon Loading-System, fold-out rewind crank, auto-zeroing frame counter lens mount M42x1
self timer none battery none
metering system none flash system X-synchronisation (1/125), accessory shoe at the top of the pentaprism
flash indication none aperture reflection into view finder none
general comments on the basis of the leatherette, the black quick-release lever and black rewind bottom this camera is possible a part of the firth generation, the same finish as the Praktica L3 ENDO but no badge ot the pentaprism-front
collection data
Hummel-No 192(B) ??? Kadlubek-No. KWE 1611 ?
body no. 854144 lens no. none
lens type none purchase price 70€
advertising



manual

under construction
