VLC field lenses
VLC waist level view finder VLC magnifying view finder VLC pentaprism view finder VLC field lenses VLC special flash shoe VLC hot shoe



The VLC field lenses were useable for all VLC viewfinder systems, i.e. waist level view finder, viewfinder with magnifier attachment or pentaprism attachement, which allow a perfect adaptation of the viewfinder to the application, such as micro- or macro-photographie etc.

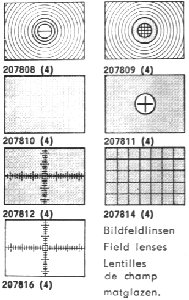

Altogether seven types of field lenses were available:
bulletFresnel lens with central split-image range finder surrounded by a microprism ring
bulletFresnel lens with central spot of microprisms surrounded by a ground glass ring
bulletground glass
bulletground glass with a central clear field with central cross
bulletchequered screen on ground glass
bulletground glass screen with a large cross graduated type
bulletclear screen with


ground glass field lens                                                                                                               different types of field lenses
