Praktica IVF
Praktica IV Praktica IV, 2nd variation Praktica IV, 2nd variation, cut model Praktica IV, 2nd variation Praktica IV, 2nd variation Praktica IV, 2nd variation, microscope Praktica IV B Praktica IV B - brown film reminder Praktica IV B - silver-white frame Praktica IV B - thick white frame Praktica IV M Praktica IV BM Praktica IVF Praktica IV FB Praktica V F Praktica V FB

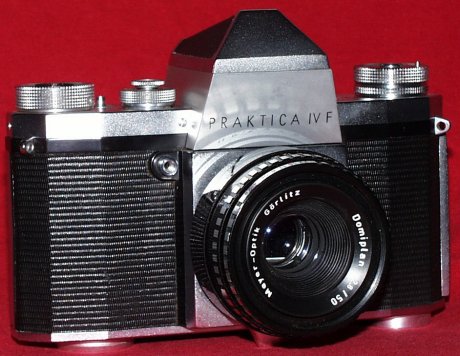

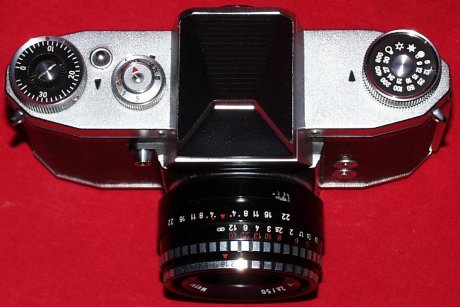

Praktica IVF
Producer data
Producer VEB Kamera- und Kinowerke Dresden; since March 1964 VEB Pentacon Dresden Kamera- und Kinowerke responsible constructor Horst Strehle
production period December 1963 to January 1966 no of produced cameras 20,445
Technical properties of the camera
shutter type mechanically controlled horizontal-run rubberised cloth-blind type shutter with twin settings for fast and slow speeds exposure time
(possible settings)
B, 1/2, 1/5, 1/10, 1/25, 1/50, 1/100, 1/200,1/500
view finder fixed eye-level view finder (Pentaprism) with fresnel-screen with split-image range finder and ground-glass ring mirror no instant-return mirror
film transport / frame counter knob film advance, loose film take-up spool (plastic), manual frame counter, divided rewind knob as fold-out lever for rewinding, rapid winder at the camera bottom lens mount M42x1
self timer none battery none
metering system none flash system X- and F-synchronisation with two flash coaxial sockets at the front of the camera body
flash indication none aperture reflection into view finder none
general comments
collection data
Hummel-No 145 Kadlubek-No. KWE 1260
body no. 485068 lens no. 4236189
lens type Meyer-Optik Görlitz Domiplan 2.8/50 purchase price 40€
advertising



manual

under construction
