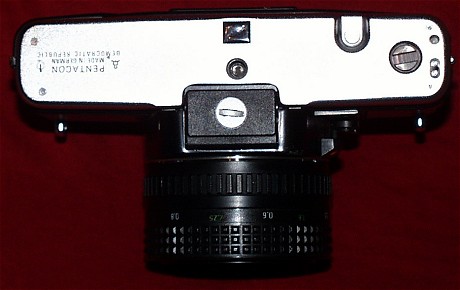

Praktica BCX

Praktica BCX

Producer data

Producer

Kombinat VEB Pentacon Dresden

responsible constructor

Werner Hahn, Rolf Noack

production period

1983 to 1984

no of produced cameras

as a part of the Praktica B200-series (1th variation) (69,500)

Technical properties of the camera

shutter type

steplessly working electronically controlled vertical-run metal-blade focal plane shutter

exposure time
(possible settings)

B, stepless automatic speeds between 40 sec and 1/1000; manually precise speeds of 1/1, 1/2, 1/4, 1/8, 1/15, 1/30, 1/60, 1/125, 1/250,1/500, 1/1000; mechanical range 1/90 sec

view finder

fixed eye-level view finder (Pentaprism, field of view: 95%) with field lens with triple rangefinder wedge, truncated microprism screen, groundglass field, LEDs- for shutter speed signalling changes their brightness with brightness of the image

mirror

instant-return mirror

film transport / frame counter

single stroke 125° wind-on quick-release lever with 25° stand off position, accepts B-motor winder, folding crank rewind knob, auto-zeroing frame counter

lens mount

Praktica-B-mount with EDC (electronic diaphragm control)

self timer

mechanically, approx. 10 sec delay

battery

VARTA V28 PX (4xLR44)

metering system

TTL-metering (12 to 3200 ASA) using electronic diaphragm control (EDC) for measurement with open aperture using a Gallium-Arsenide-Phosphide photo-diode, auto exposure compensation with +/- two shutter speeds in half steps, automatic exposure system with memory key, battery check facilities

flash system

X-synchronisation (1/90), accessory shoe at the top of the pentaprism, additionally coaxial flash socket at the camera body for dual flash systems

flash indication

none

aperture reflection into view finder

yes

general comments
