Praktica BC1
Praktica B 200 Praktica B 200 S Praktica B 200 silver Praktica BCX Praktica B 200 2nd Praktica B 200 Cattaneo Praktica B 200 silver Praktica B 200 Pentacon Italia Praktica BCX Praktica BCX black Praktica BC1 Praktica BC1 Praktica BC1 quarz-electronic Praktica BC1 PI Arabic Jenaflex AM-1 Jenaflex AM-1 golden CZ-logo 1st Jenaflex AM-1 golden CZ-logo 2nd Praktica BC3 Praktica BC3 without Pentacon badge

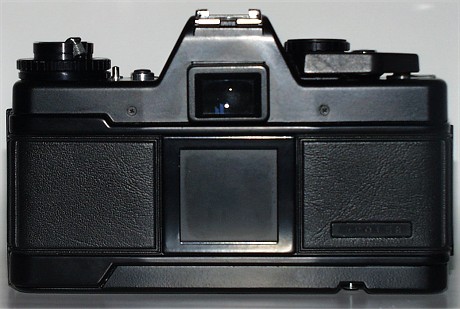

Praktica BC1, first version
Producer data
Producer VEB Pentacon Dresden Betrieb des Kombinates VEB Carl Zeiss Jena responsible constructor Werner Hahn, Rolf Noack
production period April 1984 to 1985 no of produced cameras 91,500
Technical properties of the camera
shutter type steplessly working electronically controlled vertical-run metal-blade focal plane shutter exposure time
(possible settings)
B, steplessly automatic speeds between 40 sec and 1/1000; manually precise speeds of 1/1, 1/2, 1/4, 1/8, 1/15, 1/30, 1/60, 1/125, 1/250,1/500, 1/1000; mechanical range 1/90 sec
view finder fixed eye-level view finder (Pentaprism, field of view: 95%) with field lens with triple rangefinder wedge, truncated microprism screen, groundglass field, red LEDs- for shutter speed signaling changes their brightness with brightness of the image mirror instant-return mirror
film transport / frame counter single stroke 125° wind-on quick-release lever with 25° stand off position, accepts B-motor winder, folding crank rewind knob, auto-zeroing frame counter lens mount Praktica-B-mount with EDC (electronic diaphragm control)
self timer mechanically, approx. 10 sec delay battery VARTA V28 PX (4xLR44)
metering system TTL-metering (12 to 3200 ASA) using electronic diaphragm control (EDC) for measurement with open aperture using a Gallium-Arsenide-Phosphide photo-diode, auto exposure compensation with +/- two shutter speeds in half steps, automatic exposure system with memory key, battery check facilities flash system X-synchronization (1/90), accessory shoe at the top of the pentaprism with additional contact for the flash ready signal, additionally coaxial flash socket at the camera body for dual flash systems
flash indication yes, green LED aperture reflection into view finder yes
general comments
bulletfirst version with first version of exposure-compensation and ASA-setting knob
bulletcylindrical rewind knob with metal crank arm
collection data
Hummel-No 221 Kadlubek-No. KWE 1350
body no. 4490158 lens no. 2676315
lens type Pentacon Prakticar 1.8/50 MC  purchase price 75€
advertising

manual

under construction
